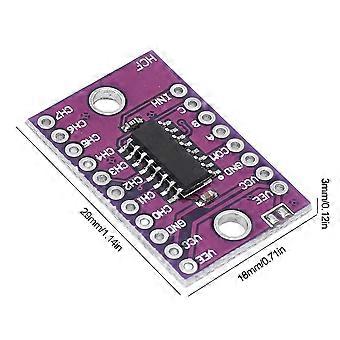

_x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ 74HC4051 CD4051 Single 8-Channel Analog Multiplexer Demultiplexer Module Analog Multiplexer Selector Module for Arduino _x000D_ _x000D_ _x000D_ Feature: _x000D_ _x000D_ _x000D_ 1.High Channel Count: With 8 channels, the analog multiplexer demultiplexer module allows simultaneous connection and switching of multiple input or output signals, enabling efficient handling of complex signal routing. _x000D_ 2.Digital Control: The analog multiplexer selector module can be controlled through digital inputs, simplifying signal switching and multiplexing operations. This enhances ease of use and reduces the complexity of signal management. _x000D_ 3.Low Voltage Operation: The multiplexers distributor resolver operates reliably at low voltages, typically ranging from 2V to 6V. This makes it well-suited for low-voltage circuits and low-power applications, providing flexibility and energy efficiency. _x000D_ 4.Low Resistance and Crosstalk: The digitally controlled electronic switch multiplexers features low resistance and crosstalk characteristics, delivering reduced signal distortion and interference. This ensures high signal integrity and accurate transmission of data. _x000D_ 5.Versatility and Compatibility: The analog multiplexer board module's high channel count, digital control, low voltage operation, and low resistance/interference make it compatible with various systems and applications. It offers versatility to adapt to different signal requirements and ensures seamless integration into diverse setups. _x000D_ _x000D_ _x000D_ Specification: _x000D_ Origin: Mainland China _x000D_ The 74HC4051 is a single-pole, eight-throw analog switch (SP8T) suitable for analog or digital 8:1 multiplexer/demultiplexer applications. The switch has three digital select inputs (S0, S1 and S2), eight independent inputs/outputs (Yn), a common input/output (Z) and a digital enable input (E). When E is HIGH, the switch is closed. Inputs include clamp diodes. This allows the input interface to be connected to a voltage above VCC using a current limiting resistor. _x000D_ Wide Analog Input Voltage Range from -5 V to +5 V Complies with JEDEC Standard No. 1. 7A _x000D_ Low on-resistance: _x000D_ 80 ohm (typ) at VCC-VEE = 4.5 V 70 ohm (typ) at VCC-VEE = 6.0 V 60 ohm (typ) at VCC-VEE = 9.0 V _x000D_ Logic Level Translation: Enables 5 V logic to communicate with 5 V analog signals Typical 'break before make' built-in ESD protection: _x000D_ HBM JESD22-A114F exceeds 2000 V _x000D_ MM JESD22-A115-A exceeds 200 V _x000D_ CDM JESD22-C101E exceeds 1000 V _x000D_ Specified between -40C to +85C and -40C to +125C _x000D_ _x000D_ _x000D_ Note: _x000D_ Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you! _x000D_ Please allow 1-2cm measuring deviation due to manual measurement._x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_
