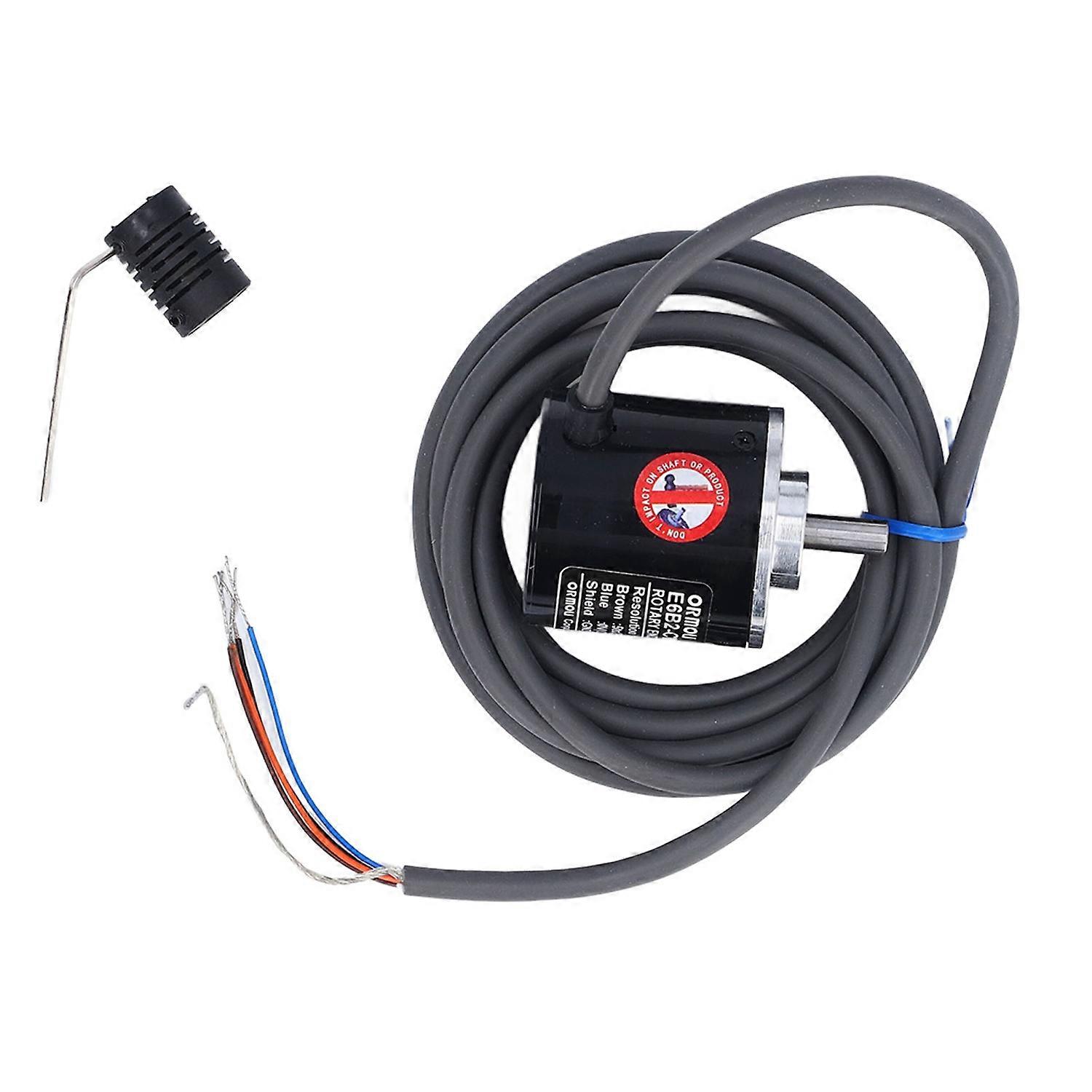

Feature: 1. HIGH ACCURACY MEASUREMENT: The E6B2 CWZ6C encoder provides highly accurate rotational measurements, meeting various application requirements with accuracy. 2. MULTIPLE VOLTAGE COMPATIBILITY: With support for 5‑24VDC voltage input, this encoder can adapt to different devices and circuit requirements, offering flexibility and reliability. 3. RELIABLE AND DURABLE: This encoder is built with excellent workmanship and durability, ensuring long term usage without compromising its performance. It is suitable for both industrial and commercial applications. 4. EASY INSTALLATION: With simple installation steps and user friendly design, this encoder is easy to install, reducing operation difficulty and time cost. 5. VERSATILE APPLICATIONS: The rotary encoder is widely used in robotics, CNC equipment, automobiles, and other industrial machinery, providing accurate rotational angle measurement and control functions. Specification: Item Type: Rotary Encoder Material: Stainless Steel, ABS Rated Supply Voltage: DC5-24V Current Consumption: Below 80mA Output Status: NPN open collector output Output Capacity: Applied voltage DC30V or less Synchronization current below 35mA The residual voltage is below 0.4V (synchronous current 35mA) Maximum Response Frequency: 100kHz Output Phase Difference: A phase, B phase difference 90±45° Starting Torsion: 1m N.m Moment of Inertia: 1 x 10 minus six power kg.m² Allowable Maximum Speed: 6000r/min Shaft Load: Radial 30N Thrust to 20N Ambient Temperature: -10℃ to +70℃ Ambient Humidity: 35 to 85%RH . Package List: 1 x Encoder 1 x Hex Wrench 1 x Accessory 1 x User Manual
