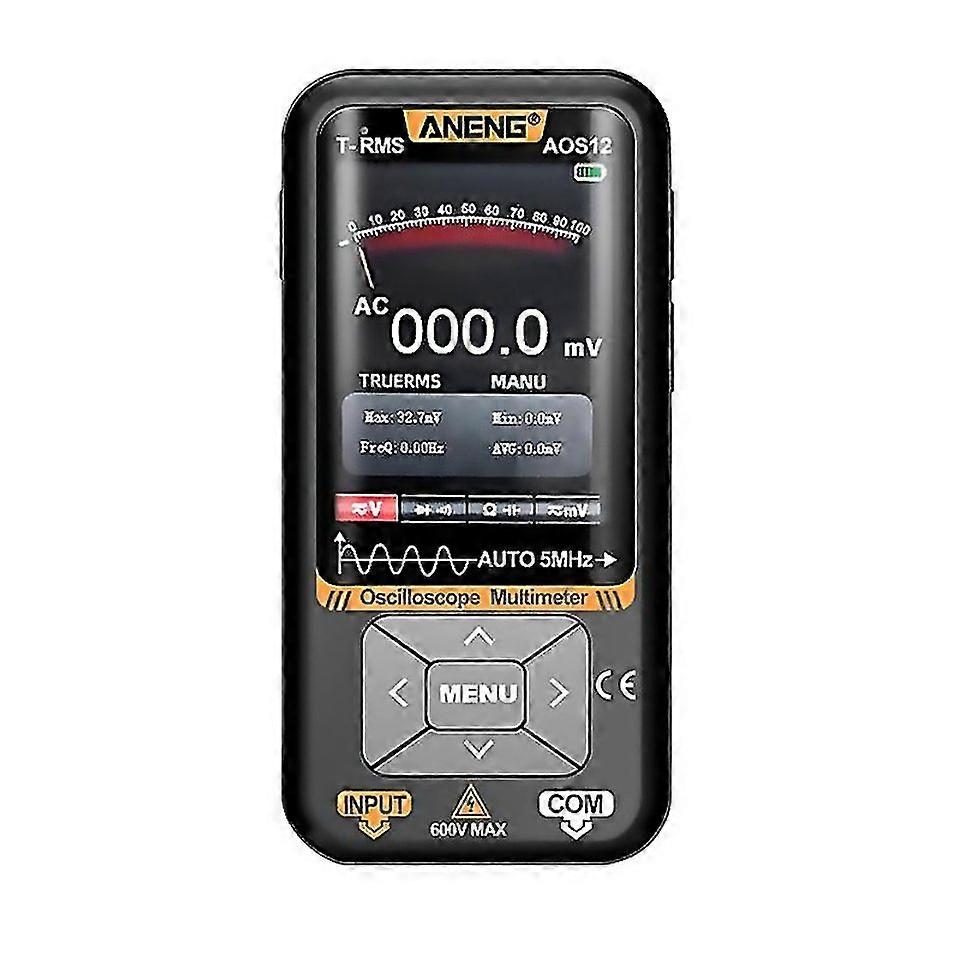

Fangrui Product Details 1. Aneng 2 In 1 Handheld Color Screen Oscilloscope Digital Multimeter 2. Material: Abs+tpe 3. Bandwidth: 5mhz 4. Sampling Mode: Real-time Sampling 5. Real-time Sampling Rate: 48msas 6. Input Coupling: Dc, Ac 7. Input Impedance: 10μω,@16pf 8. Sampling Rate Range: 1.5sas-48msas 9. Waveform Interpolation: (sinx)x 10. Sweep Speed Range: 100nsdiv-20sdiv 11. Time Base Accuracy: 20ppm 12. Measurement Information: Frequency, Peak-to-peak Value, Maximum Value, Minimum Value, Rms, Duty Cycle 13. Waveform Storage: About 104 Waveforms Can Be Stored 14. Dc Voltage (v): 999.9mv-600.0v 15. Dc Voltage (mv): 9.999mv-99.99mv 16. Ac Voltage (v): 999.9mv-600.0v 17. Ac Voltage (mv): 9.999mv-99.99mv 18. Resistance: 99.99ω-99.99μω 19. Capacitance: 9.999nf-99.99m 20. Language Options: Chineseenglish 21. Count: 9999 22. Range: Automanual 23. Sampling Rate: 3 Timessecond 24. Battery Type: 3.7v 1500mah Lithium Battery 25. Frequency (can Only Measure Up To 100kz In Ac Voltage Mode): 99.99hz-999.9khz 26. In Oscilloscope Mode, Long Press The Menu Button To Pop Up The Extended Menu, Press The Left And Right Buttons To Select The Third Page, Press Up And Down To Adjust The Screen Brightness, And Set The Brightness Level To --- 27. Enter The Third Page Extended Menu To Enter The Storage Mode, Connect The Oscilloscope To The Computer With The Type-c Data Cable, Click The Usb Disk, And Open The Pic Folder To View 28. The Test Pen Can Also Measure The Waveform. When Measuring The Waveform Of An Unknown Signal, You Can Short Press The Auto Button To Automatically Obtain The Waveform, Or Manually Set The Predicted Waveform Voltage Time Base, Cursor Position And Other Parameters 29. 3.7v 1500mah Lithium Battery Charging, Equipped With A Type-c Data Cable, The Charging Indicator Light Is Red, And The Full Indicator Light Is Not On 30. Weight: 157 Grams 31. Dimensions: 14.3x7.05x2.16 Cm
