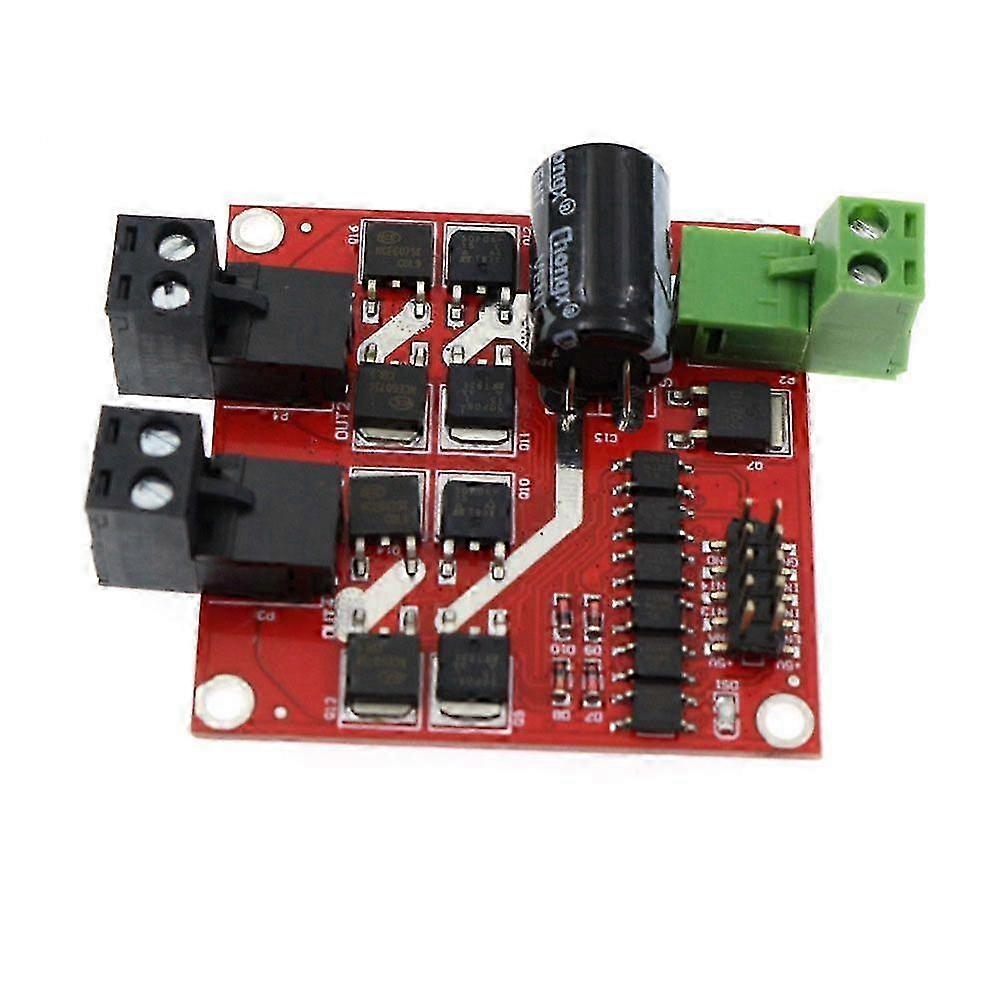

L298 Dual Channel Motor Driver - 6.5V to 27V Control Board for Electric Motors up to 7A

129,00 zł
DARMOWA wysyłka

L298 Dual Channel Motor Driver - 6.5V to 27V Control Board for Electric Motors up to 7A

  • Marka: Unbranded
Sprzedawca:

L298 Dual Channel Motor Driver - 6.5V to 27V Control Board for Electric Motors up to 7A

  • Marka: Unbranded

129,00 zł

W magazynie
DARMOWA wysyłka
Sprzedawca:

129,00 zł

W magazynie
DARMOWA wysyłka

Akceptujemy następujące metody płatności

Opis

Parameters: Power supply voltage 6.5V-27V, the power cannot be reversed or over 27V, or may burn the module, it is recommended connecting in series 15A fuse in the power input. Dual motor interface, each rated output current 7A, current 50A, the motor interface cannot short-circuit, it is recommended connecting in series 15A fuse. The enable signal and forward and reverse control signal control voltage 3-6.5V. Enable signal terminal () input PWM can regulate speed, PWM frequency range 0-10KHZ, PWM minimum pulse width 10us. STRONG DRIVE: motor driver control adopts dual H bridge, can drive two DC motors at the same time. CLOCKWISE and ANTICLOCKWISE ROTATE: the IN1, IN2 or IN3, IN4 port can control clockwise or anticlockwise motor rotation. UNDER VOLTAGE PROTECTION: with under voltage protection to prevent instantaneous large current from damaging the module. Name:Dual H Bridge Motor Controller 6.5-27V or 7A Installation hole diameter: 3mm, noted to prevent short circuit when install the reverse side, you can add insulation pad or copper column to raise the circuit board Parameters matched:Motors with rated voltage 24V, identification of rated power 115W or below, and motors with identification of rated current 7A can full work for a long time. Colour:As shown Material:Metal Package Contents: 1 x Motor Driver Module Only the above package content, other products are not included. Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is 1-3cm.
  • Identyfikator Fruugo: 413290484-873425305
  • EAN: 9643901583749
