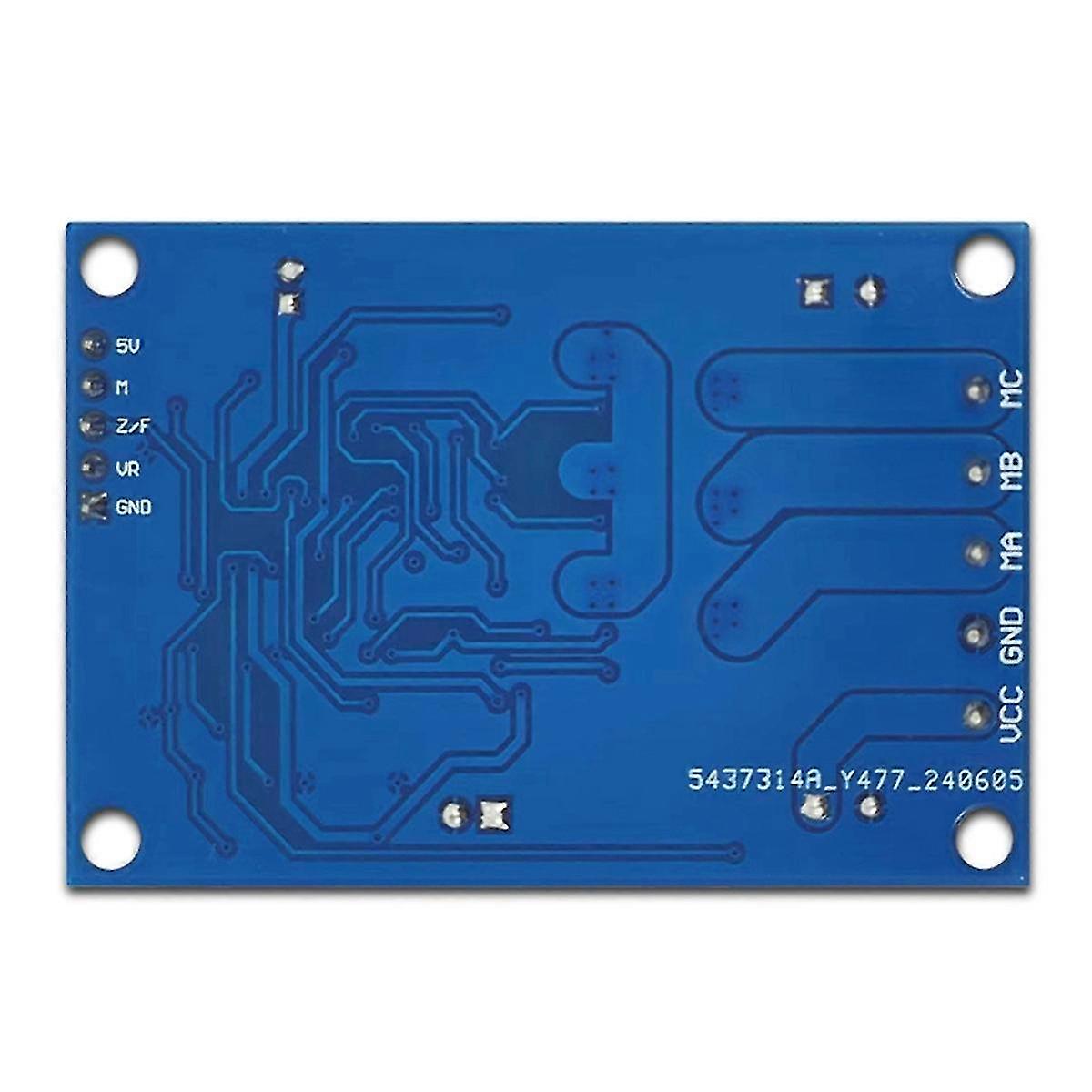

<p>1. Input Power Voltage: 12~37V</p> <p>2. Supports A Maximum Output Current Of 5A (The Maximum Value Can Be Controlled By The Resistance Of The Sampling Resistor)</p> <p>3. Adjust The Motor Speed By Rotating The Potentiometer</p> <p>4. Built-In Thermistor + Protection Circuit, With Overload And Over-Temperature Stall Protection Function To Safe Operation Of The Motor</p> <p>5.Support Spwm Driving Mode</p> <p>Product Name: Brushless Dc Hall Motor Driver Board</p> <p>Instructions For Use</p> <p>1. Power The Driver Board (DC 12-37V);</p> <p>2. Connect The Potentiometer (5V-VR-GND Pin), And Turn The Potentiometer Knob Counterclockwise To The Lowest Gear To Prevent The Motor From Automatically Turning On When Powered On;</p> <p>3. Connect The Brushless Motor Output Wire (The Three Wires Of The Three-Phase Brushless Motor Can Be Connected In Any Order, And Changing The Sequence Of Any Two Wires Can Change The Rotation Direction Of The Motor);</p> <p>4. Slowly Rotate The Potentiometer Knob Clockwise, And The Motor Will Start To Rotate.</p> <p>Note:</p> <p>Different Batches May Have Differences In Product Appearance, Color, And Printed Characters, Which Will Not Affect The Use</p> <p>Colour:As Shown</p> <p>Material:PCB</p> <p>Package Contents:</p> <p>1 x JY02 DC Brushless Hall Motor Driver Board</p> <p>Only the above package content, other products are not included.</p> <p>Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +\/- 1-3cm.</p>
