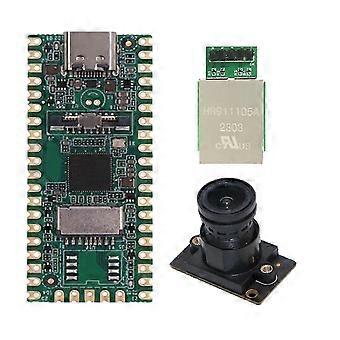

<p>[Product Introduction], Milk-V Duo is an MPU developed based on CVITEK CV1800B chip that can run LINUX and RTOS., Milk-V Duo provides , IoT enthusiasts, hobbyists, DIYers a reliable, low-cost and extremely capable platform for building and tinkering with their ideas, helping them become Reality.</p> <p>[Product parameters], Processor: CVITEK CV1800B (906@1GHz; 906@700MHz), Memory: DDR2 64MB, Storage: 1 Mirco- slot, 1 NAND pad, USB: 1 Type-C for data and power, 1 USB2 pad, Camera: 1 16P FPC socket (MIPI 2 channels), GPIO : 26 pins available for general I\/O (GPIO), Size: 21mm x 51mm</p> <p>processor:, 1GHz and 70OMHZ RISC-V C906 processor []Integrate CVITEK TPU to realize intelligent detection, Support 264\/265 video encoding, up to 2880x1620@20fps, Compatible with HD CMOS sensors, Programmable frequency output for sensor clock, Comprehensive ISP features for image optimization, Some OpenCV libraries support CV hardware acceleration, 16-bit audio codec with built-in microphone input and output, Flexible network configuration with 1 Ethernet PHY</p> <p>Ethernet:Milk-V Duo includes CV1800B chip and 100Mbps physical layer. PHY connected to 5-pin pad. Ethernet use requires external transformer and RJ45 socket, -2 (MIPl Serial Camera):With 16-pin FPC interface for 2-wire MIPI camera input. Operate l2C, CLK and signals at 1.8V voltage level. GPIOs:Up to 26 GPIO pins on the MilkV Duo 40-pin header to access internal peripherals such as SDIO, I2C, PWM, SPI, J-TAG, and UART.Up to 3xI2C. up to 5xUART</p> <p>Up to 1xSDIO1. Up to 1xSPI. Up to 2xADC. Up to 7xPWM. Up to 1xRUN. Up to 1xJTAG</p> <p>USB interface:</p> <p>Compatible with USB 2.0, backward compatible with USB 1.1</p> <p>Support for speed modes, host\/device capabilities and transports</p> <p>protocol:</p> <p>Scalable interface via USB hub (up to 127 devices)</p> <p>Power saving mode, rt HID devices</p> <p>USB with configurable software</p> <p>USB Type-C for accessing storage media</p> <p>Micro-:</p> <p>SDIO 0 is compatible with the Secure Digital Storage (SD3.0) protocol</p> <p>Board :</p> <p>Single-sided PCB</p> <p>Size: 51x21mm</p> <p>Thickness: 1mm</p> <p>Type-C port located on the top edge</p> <p>Dual Slotted\/Through Hole Headers Around Remaining Edge</p> <p>Available as surface mount modules or in dual in-line package (DIP) format</p> <p>40 primary user pins on 2.54mm (0.1inch) pitch grid with 1mm holes</p> <p>Compatible with veroboard and breadboard</p> <p>Please note that due to different batches, there may be differences in the appearance, color, and printing of the product, which will not affect its use</p> <p>Colour:random colors, don't accept the specified color</p> <p>Material:PCB</p> <p>Package Contents:</p> <p>1 x Development Board(random colors, don't accept the specified color) </p> <p>1 x Milk-V Duo RJ45</p> <p>1 x 2MP CAM GC2083</p> <p>Only the above package content, other products are not included.</p> <p>Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +\/- 1-3cm.</p>
